Home|TOC|Chord Symbols|   Inserting Chord and Fret Diagrams


Chord symbols, Guitar Fret Diagrams

Inserting Chord / Fret Diagrams

Last updated: 07/30/2024

SmartScore supports chord symbols as fret diagrams or as simple chord names. You can insert, delete, reposition, edit, create and save new chord configurations using the "Guitar Chord" dialog tool. If you transpose the score, existing chord symbols will automatically update. Here’s how the chord symbol tool works …


How it works …

1
Select the Guitar Chord button from the Note Editor toolbar.
2
Click anywhere in the score where you wish to insert the chord symbol.
3
Begin choosing the building blocks of your chord in the Chord Label window of the Guitar Chord dialog. The fret diagram Library will try to match the chord you are building. If found, the fretboard fingering pattern will appear in the window to the right.

There may be more than one fingering configuration. Moving the slider down will reveal more diagrams if there are any. If your chord is unusual, it might not be found. In that case, you can create a new fingering diagram by pushing the Add button.


Note …

You can copy any guitar fret diagram or chord symbol to the clipboard simply by holding the Ctrl button down and clicking on a given symbol.

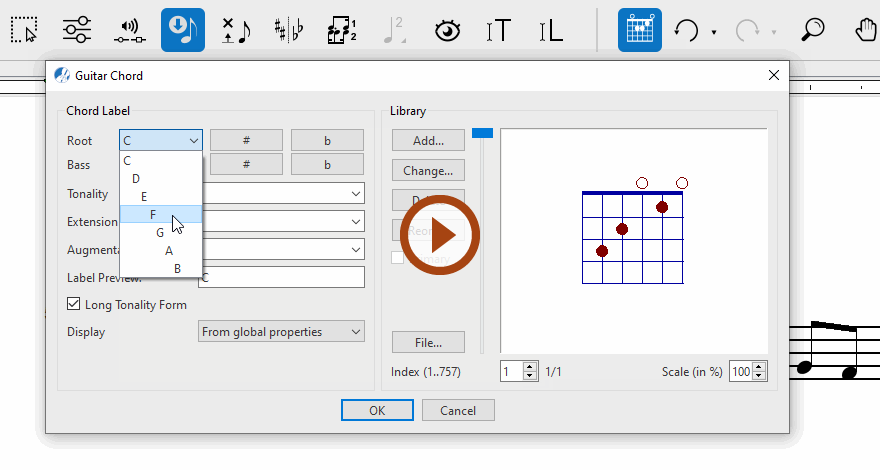

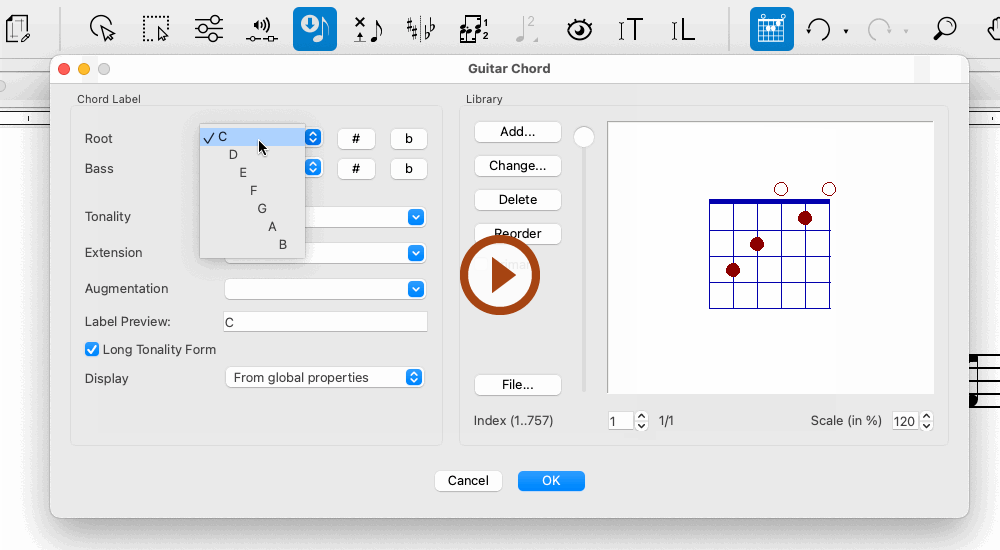

Animation (0:45) - Inserting Chord / Fret Diagrams
Animation (0:45) - Inserting Chord / Fret Diagrams
Next page
Editing and changing chord / fret diagrams
See also ⚆⚆
Guitar Chord LibraryChord Symbols (Overview)
