Home|TOC|MIDI|   Importing and Converting MIDI Files


MIDI

Importing and Converting MIDI Files

Last updated: 07/30/2024

You can import any standard MIDI file into SmartScore (Type 1 – Many tracks / many channels) or Type 0 – One track / many channels). Imported MIDI events will appear in the Overview window where it can be played back and even edited. If you wish, you can even convert the MIDI file to standard musical notation (with all the limitations inherent in the MIDI standard).



Importing a MIDI file

Select ☰ FILE > Open.
The keyboard command   +   will also open a file browser.
Or, in SmartScore’s Task Window, click on the Import MIDI file button.
Browse to a MIDI file on your computer then double-click to select it.



Converting MIDI files into notation

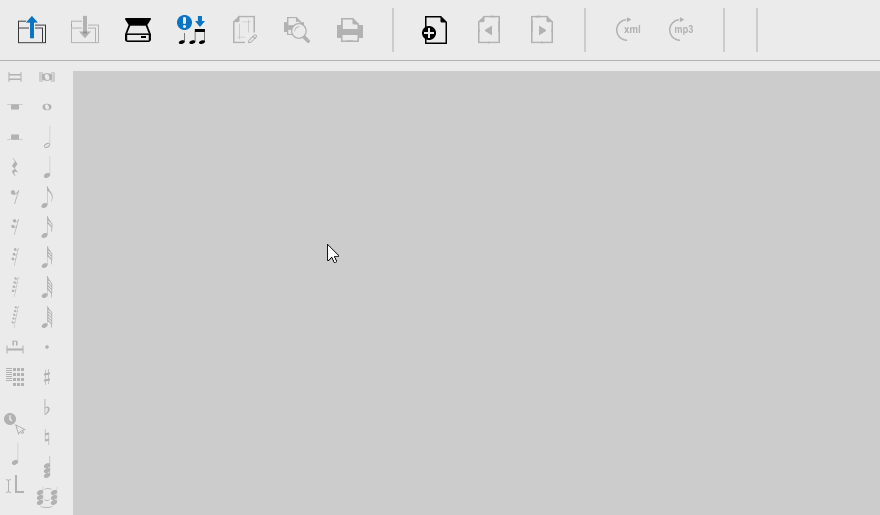

Animation (0:40) - Converting MIDI files into notation

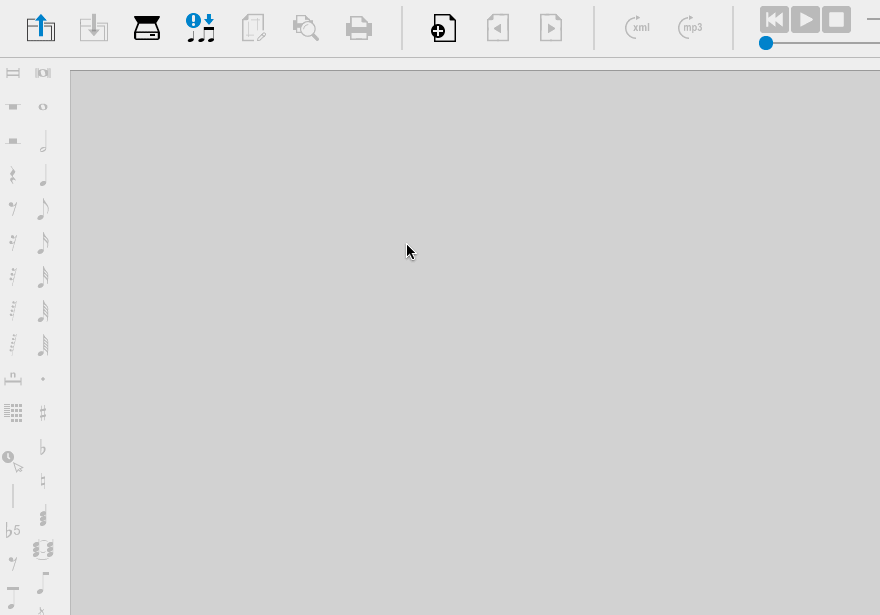

Animation (0:37) - Converting MIDI files into notation
1
With a MIDI file open in Overview or another MIDI view, select ☰ EDIT > Convert MIDI to ENF (ENF being SmartScore’s file format). Or simply close the Playback Console.
2

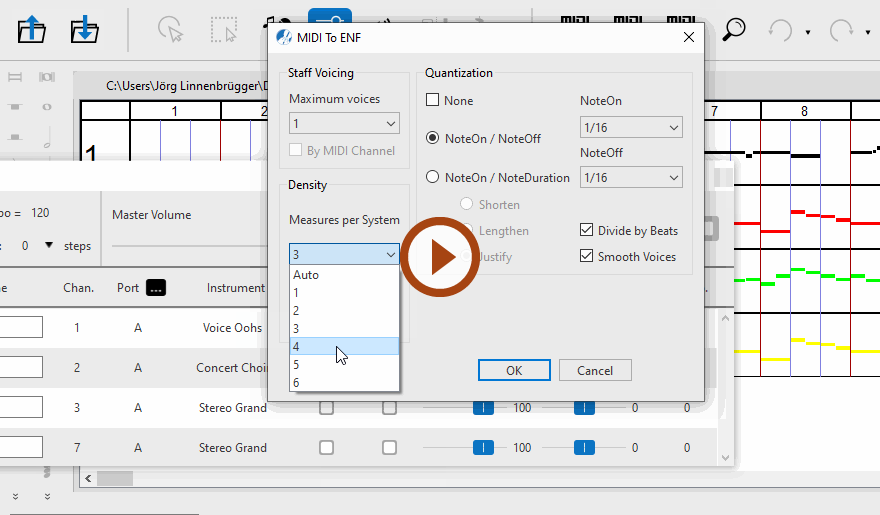

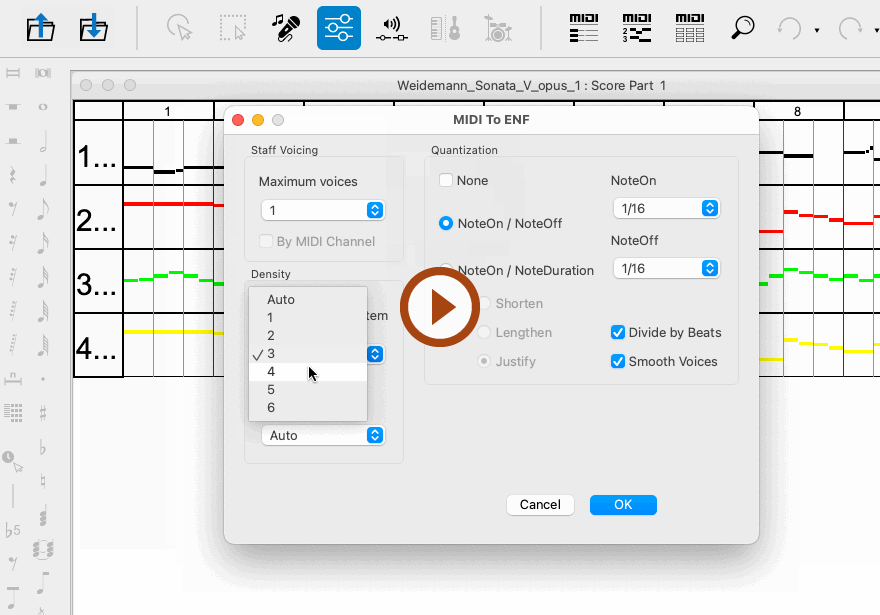

The MIDI to ENF dialog will open. Here you can apply options prior to conversion. SmartScore converts MIDI tracks to individual parts which will appear as staff lines connected by a bracket to a system.
3
By default, contrapuntal voices are not differentiated. If desired, set the maximum number of contrapuntal voices you wish to differentiate using the Maximum voices pull-down menu. Each voice will be assigned a unique MIDI Channel and given an unique color.


NOTE …

Calculating polyphonic voices from a MIDI file is a tricky deal since MIDI has no contrapuntal intelligence. Trying to extract more than 2 voices per track will most likely result in something less than desirable … but you can always try. If necessary, you can go back and try again with a lesser number of voices.

4
Select the Measures per System you wish to have in each system.
5
In the Quantization section of the dialog, set the NoteOn and NoteOff value to the smallest note value present in the file. If you set the note value higher, you may wind up with more notes than you bargained for.
6
Click OK and the MIDI file will convert to a SmartScore .ENF file and appear as notation in the Note Editor window.

Is your MIDI file "quantized" ? It should be if you want it to look right …

MIDI files can be created "freely" with no attention paid to the internal MIDI time clock or time signature. Such "free-form" files may sound OK when played, but they lack internal timing constraints. Quantized MIDI files conform to strict rhythmic structures necessary to convert to music notation such as time signature and "number of ticks per note event". Smartscore will properly convert only quantized MIDI files.
