Home|TOC|Music Recognition|   Begin Recognition window


Music Recognition

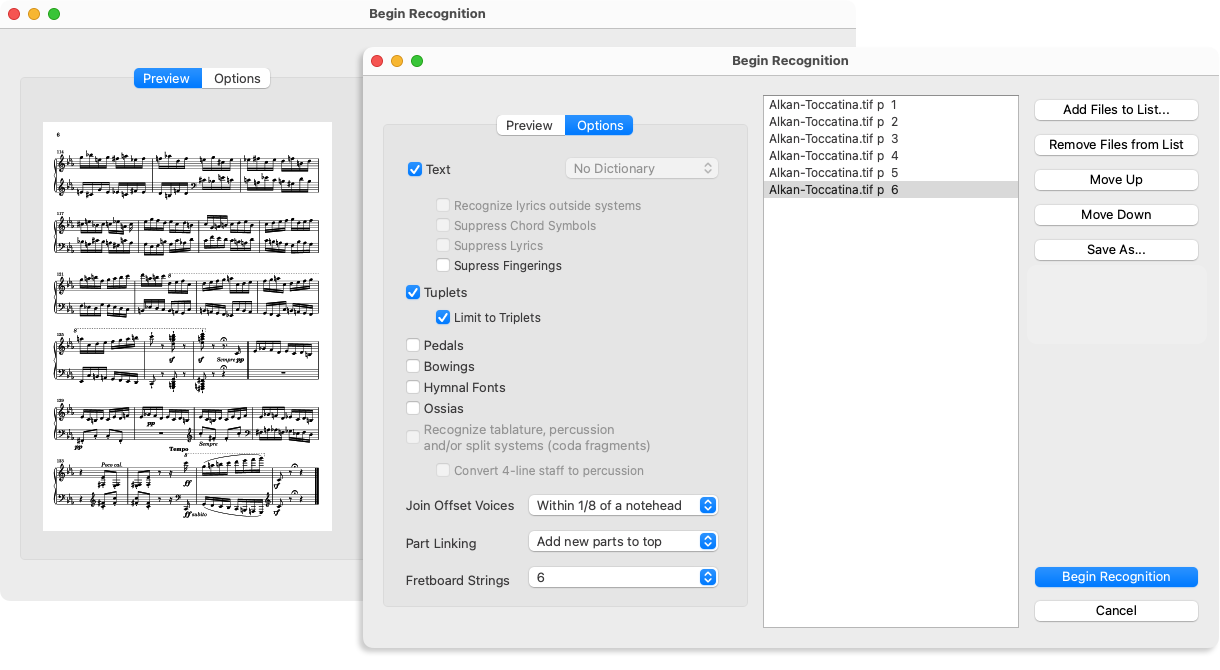

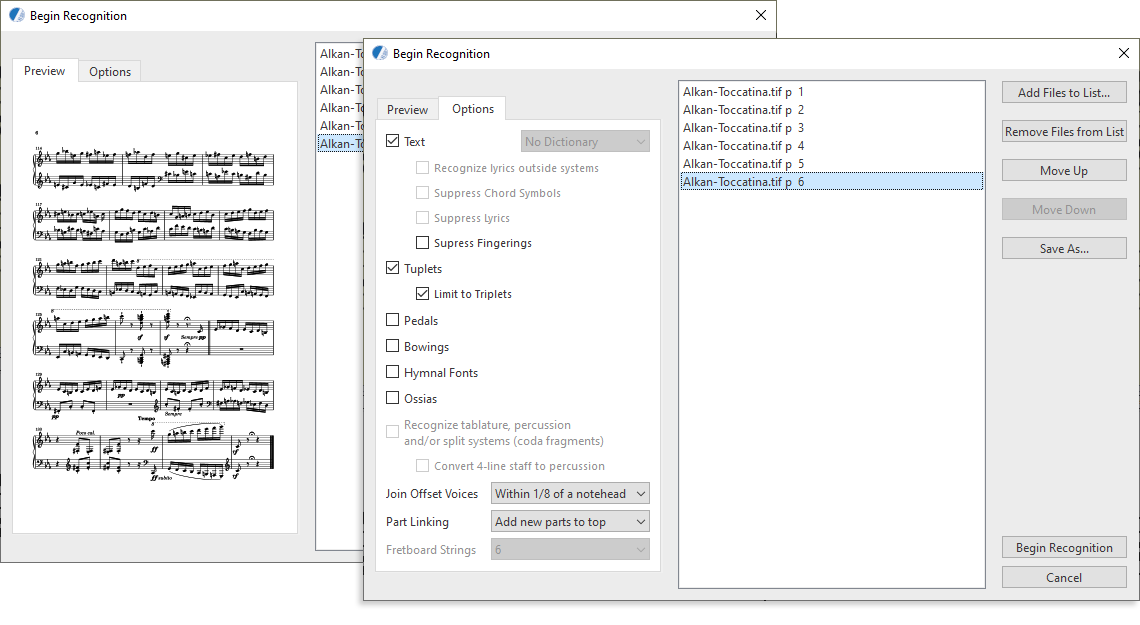

The Begin Recognition window

Last updated: 07/30/2024

Once pages are scanned and saved, you can now begin the recognition process. Recognition is activated after scanning or from inside the Image Editor, pages are automatically loaded into the Begin Recognition window.


How to get there …

There are several ways to open the Begin Recognition window.

Click the Recognition button in the Task Window.
Click the Recognition button in the Input / Output toolbar.
Select ☰ FILE > Recognize from the main menu.
1
Preview

The Preview tab allows you to view each scanned page prior to recognition.
2
Options

The Options tab includes various preset parameters that may assist in recognition.
3
List of pages

All pages contained in your TIF or PDF file appear, in order, inside the list of pages window pane. Individual pages can be added, removed, reordered, and re-saved into a highly-compressed CCITT 3 TIF file format.
4
Add Files to List (TIF, PDF)…

If you find one or two pages were mis-scanned, you can easily remove and replace the bad pages with good. Simply Remove, Add and Move pages up or down.
5
Reorder pages

Select one or more pages and press the Move Up or Move Down button.
6
Combine single pages into one multi-page .TIF file

If you imported single page .TIF files, you can combine and save them all into a single, multi-page .TIF file with this button.
7
Begin Recognition

Click to begin the Recognition process on pages shown in the List of Pages.
8
Recognition Options

The most common options are pre-selected. Normally you will simply accept the defaults. See Recognition Options.
9
Offset voices:

Increase or decrease the allowable horizontal offset of noteheads belonging to different voices that are not vertically aligned, yet ought to play simultaneously. See Notation Editing: Notes & Voices.
1
Preview

The Preview tab allows you to view each scanned page prior to recognition.
2
Options

The Options tab includes various preset parameters that may assist in recognition.
3
List of pages

All pages contained in your TIF or PDF file appear, in order, inside the list of pages window pane. Individual pages can be added, removed, reordered, and re-saved into a highly-compressed CCITT 3 TIF file format.
4
Add Files to List (TIF, PDF)…

If you find one or two pages were mis-scanned, you can easily remove and replace the bad pages with good. Simply Remove, Add and Move pages up or down.
5
Reorder pages

Select one or more pages and press the Move Up or Move Down button.
6
Combine single pages into one multi-page .TIF file

If you imported single page .TIF files, you can combine and save them all into a single, multi-page .TIF file with this button.
7
Begin Recognition

Click to begin the Recognition process on pages shown in the List of Pages.
8
Recognition Options

The most common options are pre-selected. Normally you will simply accept the defaults. See Recognition Options.
9
Offset voices:

Increase or decrease the allowable horizontal offset of noteheads belonging to different voices that are not vertically aligned, yet ought to play simultaneously. See Notation Editing: Notes & Voices.

Main functions of the Begin Recognition window …


1
Preview: The Preview tab allows you to view each scanned page prior to recognition.
2
Options: The Options tab includes various preset parameters that may assist in recognition. See Recognition Options.
3
List of pages: All pages contained in your TIF or PDF file appear, in order, inside the list of pages window pane. Individual pages can be added, removed, reordered, and re-saved into a highly-compressed CCITT 3 TIF file format.
4
Add Files to List (TIF, PDF): If you find one or two pages were mis-scanned, you can easily remove and replace the bad pages with good. Simply Remove, Add and Move pages up or down.
5
Reorder pages: Select one or more pages and press the Move Up or Move Down button.
6
Combine single pages into one multi-page .TIF file: If you imported single page .TIF files, you can combine and save them all into a single, multi-page .TIF file with this button.
7
Begin Recognition: Click to begin the Recognition process on pages shown in the List of Pages.
8
Recognition Options: The most common options are pre-selected. Normally you will simply accept the defaults. See Recognition Options.
9
Offset voices: Increase or decrease the allowable horizontal offset of noteheads belonging to different voices that are not vertically aligned, yet ought to play simultaneously. See Notation Editing: Notes & Voices.
Next page
Loading PDF files
