System Manager

Working with System Manager

Last updated: 07/30/2024

Scores contain systems. Systems contain parts. Parts contain voices. In some cases, not all parts are found in all systems (e.g. "optimized" scores with collapsing and expanding parts).

Controlling parts within systems is critical for managing optimized scores including whether a part should be shown or hidden within a system ("Visibility" in "Active System") as well as adding or deleting a part (in "Super System"). This is where the System Manager comes in ...

Within the System Manager, you can …

Rename existing Part Names.
Assign General MIDI sounds to parts.
Hide or show individual parts or voices within a system (Active System).
Add or delete systems from the score (Super System).


How to get there …

The System Manager consists of two modes: Active (parts contained in current system) and Super System (containing all possible parts). To open the System Manager …

Hold down   +   keys or …
click on the System Manager button in the Tools tab or …
select ☰ EDIT > System Manager.

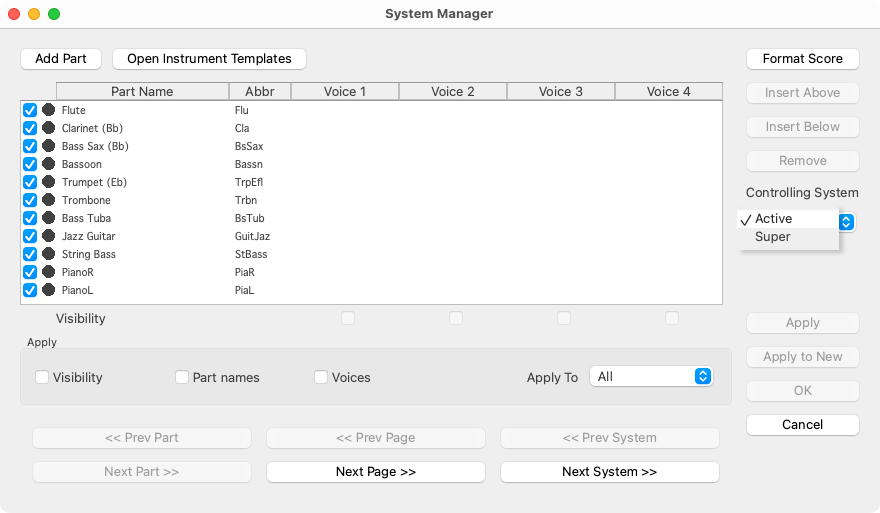

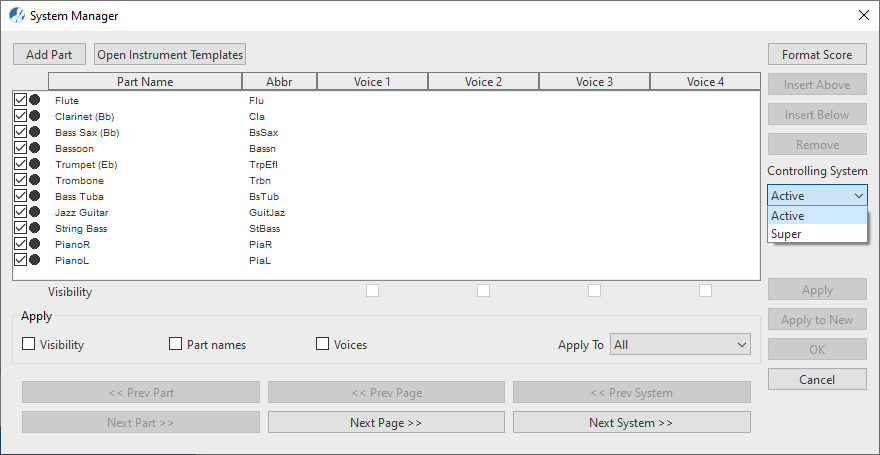

1
Add Part button

This button opens the Super System mode.
2
Instrument Templates

This button opens an environment that lets you edit or create any type of instrument such as transposed instruments with base pitches not set to concert pitch.
3
Controlling System

Active: Lists parts that are contained in the current (active) system.

Super System: Lists all possible parts contained in the entire score.
4
Navigator

Jump to the next part in the Active System or jump to the next system or jump to he next page.
1
Add Part button

This button opens the Super System mode.
2
Instrument Templates

This button opens an environment that lets you edit or create any type of instrument such as transposed instruments with base pitches not set to concert pitch.
3
Controlling System

Active: Lists parts that are contained in the current (active) system.

Super System: Lists all possible parts contained in the entire score.
4
Navigator

Jump to the next part in the Active System or jump to the next system or jump to he next page.
1
Add Part button opens the Super System mode.
2
Instrument Template opens an environment that lets you edit or create any type of instrument such as transposed instruments with base pitches not set to concert pitch.
3
Controlling System: Active: Lists parts that are contained in the current (active) system. Super System: Lists all possible parts contained in the entire score.
4
Navigation: Jump to the next part in the Active System or jump to the next system or jump to he next page.

Extracting parts and voices …

While parts and voices can be extracted using the System Manager, it is FAR easier to extract them using Score Structure. See Score Structure for details.

Next page
Changing instrument names and MIDI sounds
