Home|TOC|Properties|Score Properties|   Editing parts in Score Properties


Properties / Score Properties

Editing parts in Score Properties

Last updated: 07/30/2024

With the Properties Tool right-click inside any active staff line and select "Properties" from the Properties menu. You can remove (hide) one or more active staff lines from a system by choosing "Staff/Part > Remove". It’s also possible to add a brand new part to the ENF document by selecting "Staff/Part > Insert".


How it works …

Adding a new staff/part to the ENF document

Adding or deleting an entire part is done from inside the System Manager. Adding a part can only be done when selecting Super System as the Controlling System as shown in this video. For more details see System Manager. Alternatively, you can add or remove an entire part "graphically" using the Score Structure tool. See Score Structure for more.

1
Activate the Properties tool (ESC key)
2
Right-click inside any active staff line top open the Score Properties window.
3
Select Staff / Part > Insert. The System Manager will open.
4
Click on the black dot of the part that will be adjacent to the part you wish to insert.
5
Select Insert Above or Insert Below then OK. A new part with empty measures will be inserted into the system where you indicated.

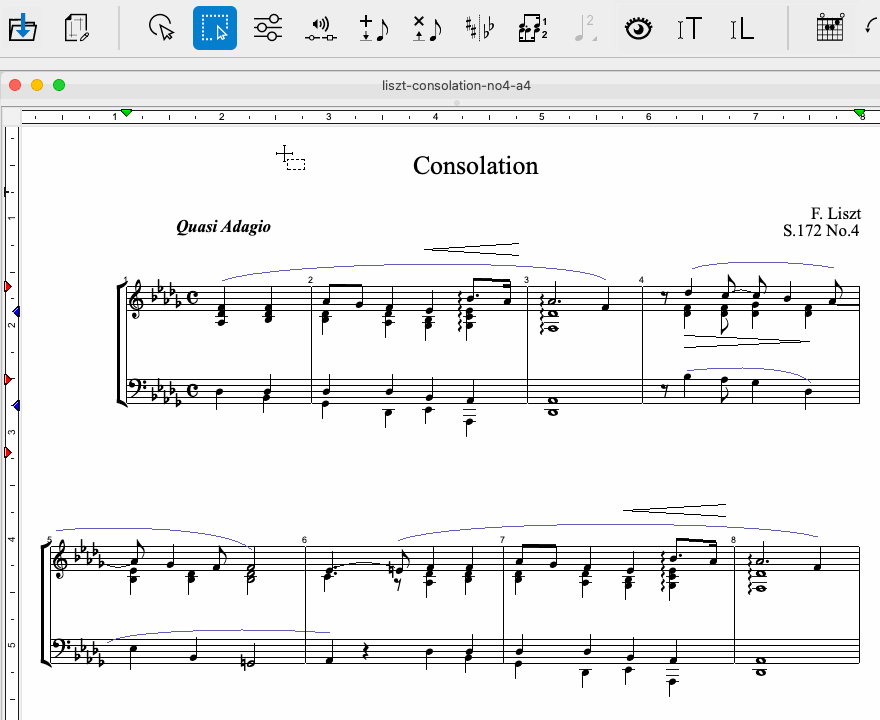

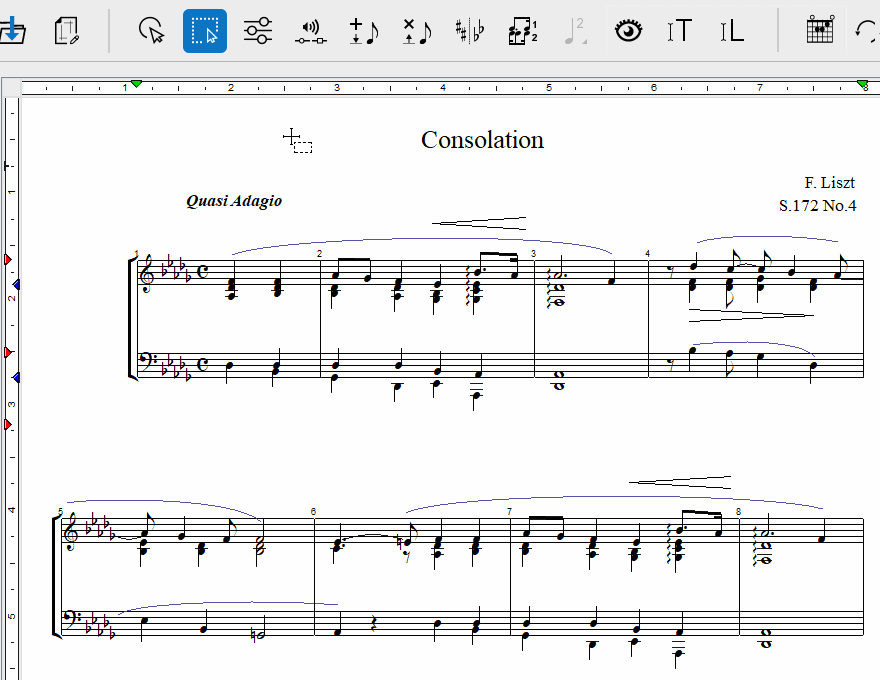

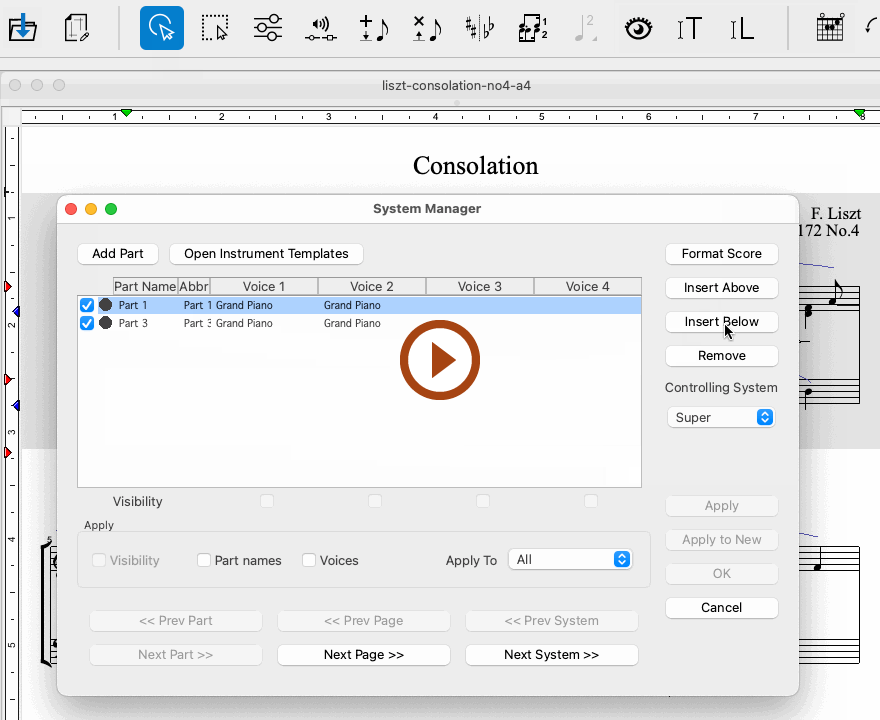

Animation (0:38) - Adding a new staff/part to the ENF document
Animation (0:33) - Adding a new staff/part to the ENF document



Removing a staff from a single system

To remove a staff from a single system, select Staff / Part > Remove from the Staff Properties menu. This will "hide" it from that system. This is useful for systems containing empty staff lines. To delete an ENTIRE part from your ENF document, use Score Structure or the System Manager.

1
Activate the Properties tool (ESC key)
2
Right-click inside any active staff line top open the Score Properties window.
3
Select Staff / Part > Remove.

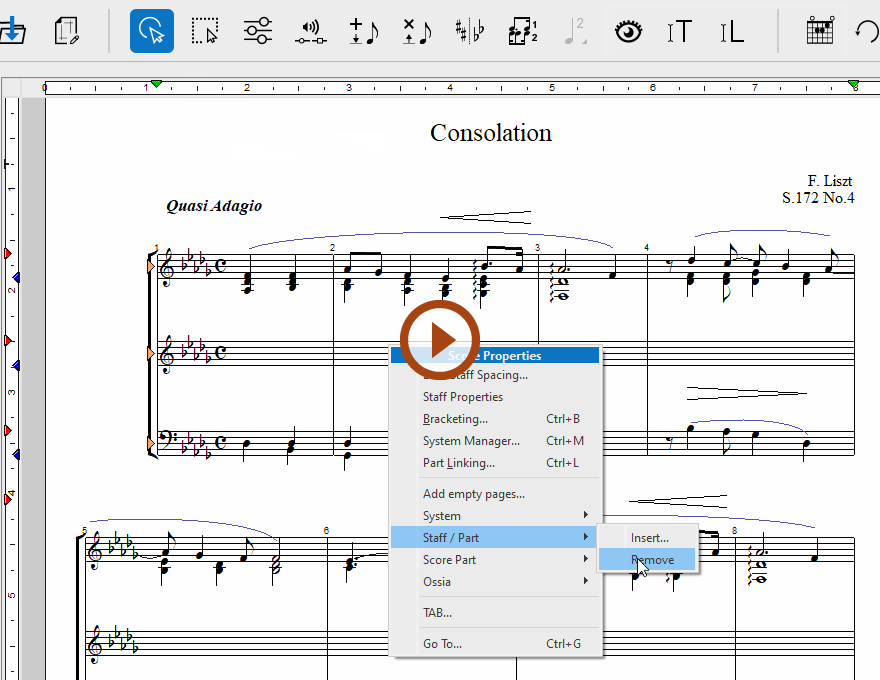

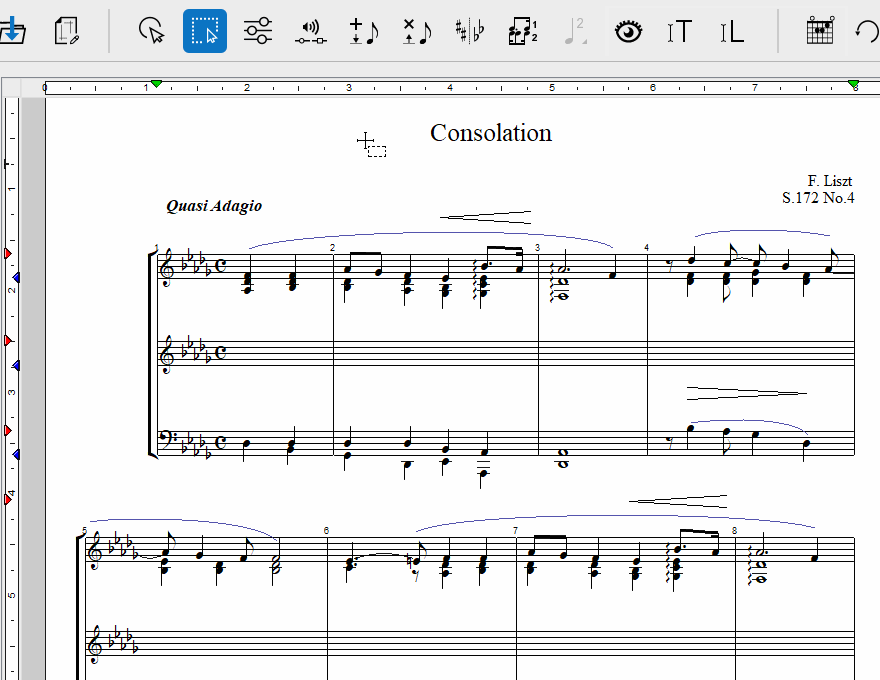

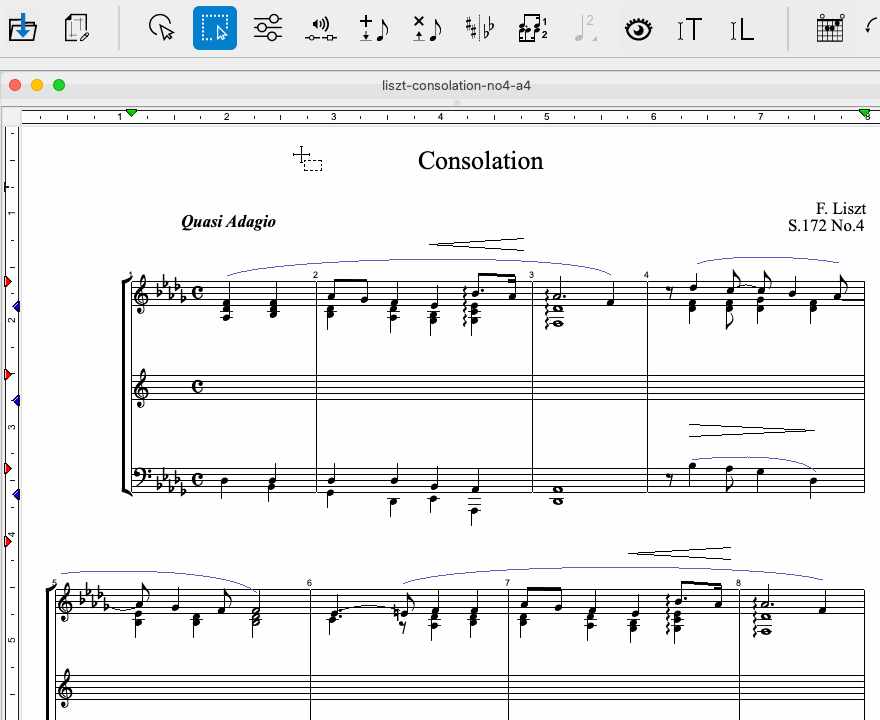

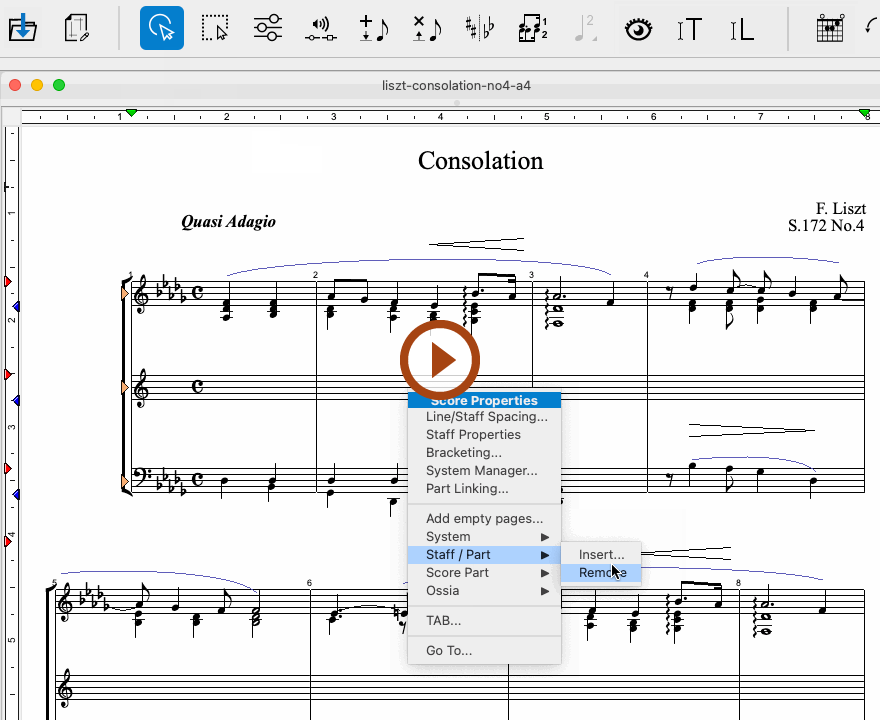

Animation (0:16) - Removing a staff from a single system
Animation (0:15) - Removing a staff from a single system
Next page
Adding empty pages
See also ⚆⚆
Editing parts in System ManagerScore StructureScore Properties (Overview)Properties Tool (Overview)
